JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing

Name: JDSU OTDR VIAVI MTS4000 50dB Long Dynamic Range for fiber loss testing
Brand: JDSU VIAVI
Price: 1 USD

China JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing wholesale

Brand Name : JDSU VIAVI

Model Number : MTS-4000

Certification : CE/ROSH/IOS9001

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500sets

Delivery Time : 5-8 work days

Packaging Details : stander packing

Type : testers & tools, Testers &Tools

Commodity : JDSU VIAVI MTS-4000 OTDR Touch Screen

Wavelength : 1310/1550dB

Dynamic Range : 35/33dB

Event Dear Zone : 2m

Long Dynamic Range : 50dB

Attenuation Dead Zone : 8m

Application : fiber loss testing

Contact Now

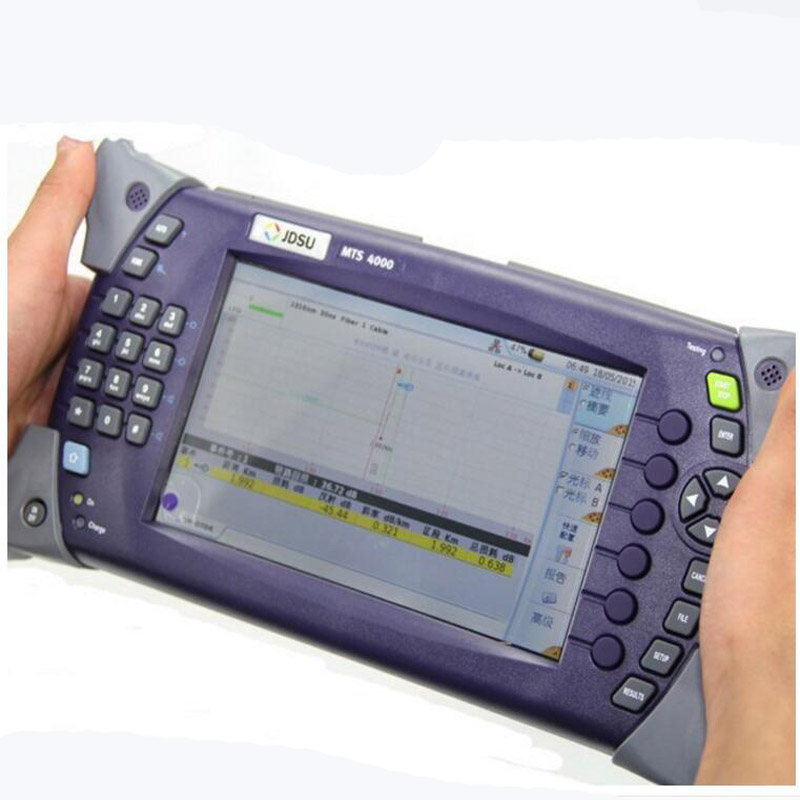

JDSU VIAVI MTS-4000 OTDR Touch Screen

Description:
All-in-one Access/FTTx/Triple-Play Services Test Set
The MTS-4000 is a small, compact and handheld test platform designed for all phases of the network lifecycle, from the installation to the maintenance of Access/FTTx networks and triple-play services. Modular in design, the MTS-4000 offers field service technicians the highest performance and superior levels of scalability and upgradeability.

Highlights
· Large 7-inch indoor/outdoor color display
· Cost-effective, compact and handheld platform
· Multi-layer network solution from physical to services layer
· Highly scalable with up to 2 field-replaceable modules
· Connection checker with VFL, power meter and video inspection scope options
· Flexible connectivity for fast data transfer: 2xUSB 2.0, up to 1 Gb/s Ethernet

JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing

Features:
· Lightweight platform: only 1.4kg/3 lbs
· Intuitive graphical user interface with touchscreen option
· Extended battery life using smart Lithium ion cell
· Scripting capability for automation, simplification and automatic data reporting
· Easy Internet access via installed web browser
· Remote control access allowing remote assistance from any expert user
· Integration of basic applications such as HTML and PDF reader
· Comprehensive suite of PC software tools for post-processing of test results with FiberTrace (OFS-100) andFiberCable (OFS-200)

Applications:
· Fiber test applications include OTDR, PON meter, video inspection scope, laser source/power meter, and VFL
· Copper test applicationsinclude volt/ohm meter, time domain reflectometer (TDR), resistive fault locator, and wideband tones/spectal analysis to 30 MHz
· Triple-play service testing/IPTV and VoIP measurements from DSL access interfaces or standard Ethernet port
· VDSL and ADSL testingusing Infineon Technologies chipset and licensed option for Dr. DSL® diagnostic solutions from Aware, Inc.

Model	LM Last Mile	MA Metro Access	QUAD Single/Multi
Wavelength (nm)	1310/1550 1625/1650 (1625 filtered)	1310/1550 1625/1650 (1625 filtered)	850/1300 1310/1550
Dynamic range (dB)	32/30 30/28	37/35 35/34	27/25 37/35
EDZ* (m)	1	0.9	0.8/0.8/0.9
ADZ** (m)	4	4	4
Range*** (km)	20	60	20/60
