Sumitomo Z2c Splicing Machine

Name: Sumitomo Z2c Splicing Machine
Brand: Sumitomo
Price: 1 USD

China Sumitomo Z2c Splicing Machine wholesale

Brand Name : Sumitomo

Model Number : Z2C

Certification : CE/ROSH/IOS9001

Place of Origin : Japan

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500sets

Delivery Time : 5-8 work days

Packaging Details : stander packing

Product name : Fiber fusion splicer

Weight : 2kg

Battery : 35.64Wh(ADC-15)

Warranty Time : 1year

Heating Time : 20S

Power Input : 50W

Max Capacity : 5400mAh

Software Update : 80 μm to 150 μm, Coating : 100 μm to 1,000 μm

Splicing Time : Quick Mode: 6 Sec, Standard and Auto Mode: 8 Sec

Fiber Diameter : Cladding:80 μm to 150 μm, Coating : 100 μm to 1,000 μm

Contact Now

Japan Sumitomo TYPE T51 Z2C Core Alignment Optical Fiber Fusion Splicer

SUMITOMO Z2C is a fast, capable and practical automatic adaptive core fusion splicer. It automatically identifies and splices all fiber types (SMF, MMF, DSF, NZDSF, BIF). Splicing time: 6 seconds, heating time: 15 seconds.

SUMITOMO Z2C is equipped with a high-capacity battery, and is also dust-resistant, water-resistant and shock-proof (drop from 76 cm on 5 faces, excluding top face).

FEATURES

Splicing cycle time: 6 sec.
Heating cycle time: 15 sec.
Automatic fiber identification (SMF, MMF, DSF, NZDSF, BIF, other).
Long-life battery for 300 splice&heat cycles.
Automatic arc calibration.
Dust-resistant, water-resistant and shock-proof.
Compact & lightweight (only 1.7 kg).
Touch-screen operation.
Upgrades software via web.
Remote interactive maintenance via web.
Equipped with onboard user training video

TECHNICAL SPECIFICATIONS

Optical Fiber Requirements
Material	silica glass
Fiber Count / Profile Types	Single / SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657)
Fiber Diameter	Cladding diameter: 80 µm ~ 150 µm, Coating diameter: 100 µm ~ 1,000 µm
Cleave Length	5~16 mm with coating clamp
Standard Performance
Splice Loss (typical)	SMF: 0.02 dB, MMF: 0.01 dB, DSF: 0.04 dB, NZDSF: 0.04 dB
Return Loss (typical)	≤60 dB
Splicing cycle time (typical)	6 sec (SM G652 Quick Mode), 8 sec (Auto Mode)
Heating cycle time (typical)	15 sec (FPS-61-2.6 sleeve, S60mm 0.25)
Splice & Heat cycles per battery full charge	approx. 300 cycles
Fiber view & magnification	two CMOS cameras observation, 350X (zoom: 700X) for X or Y single axis view, max. 250X for both X & Y dual axis view
Proof Test	1.96 - 2.09N
Applicable Protection Sleeve	60 mm, 40 mm and Sumitomo Nano sleeves
Programs
Splicing programs	max. 300 (40 are pre-optimized, 260 editable by user)
Heating programs	max. 100 (23 are pre-optimized, 77 editable by user)
Functions
Splice image capture / Splice data storage	200 images / 10 000 splice data (internal memory only) 50 200 / 20 000 (with 16 GB SD card)
Universal clamps for 250µm, 900µm tight & loose buffer fiber	Provided
Reversible coating clamps	Provided
Onboard user training video	Provided
Automatic fiber identification	Provided (SMF / MMF / other)
Automatic arc calibration	Automatically compensates for environmental condition changes
Display of remaining Splice & Heat cycles	Provided (Battery mode)
Terminals
DC output	DC12 V (for JR-6)
USB port	USB 2.0 (mini-B type)
Storage media	SD / SDHC memory card MAX 32 GB
Power Supply
AC input	100 ~ 240 V, 50 / 60 Hz (ADC-16)
DC input	10 ~15 V
Battery Pack	Li-ion 10.8 V, 6,400 mAh (BU-16)

Five points

01.

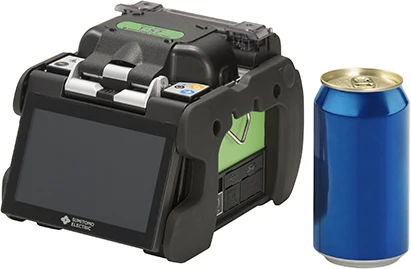

Compact, Lightweight & Faster
2.0kg with battery for 300 splice & heat cycles. Faster 6s splice in SM Quick Mode Reduced 15s heat shrink time.

02.

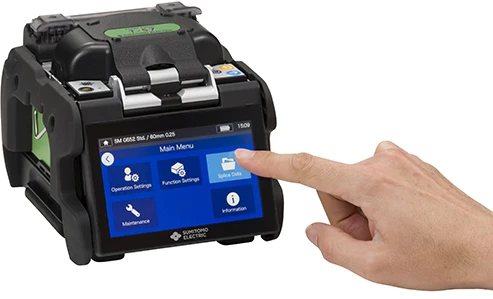

Brand-new touch panel and UI

Wide and high resolution touch panel, -5" touch screen colour LCD display, Smartphone-like easy operation.

03.

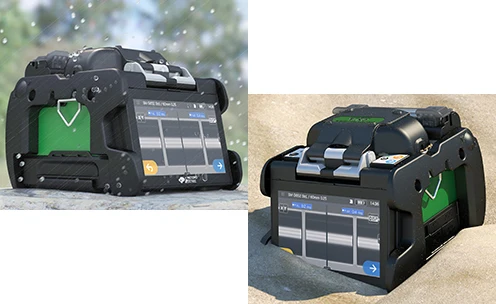

Improved Environmental Durability

IPx2 water protection IP5x dust protection Splice at 50°C Work at 6000m 76cm drop on 5 faces

04.

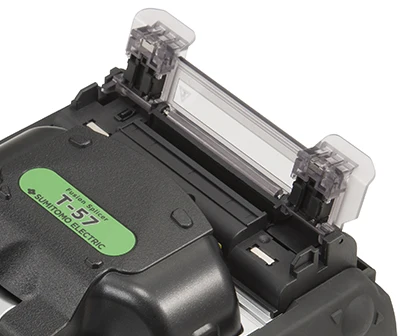

High Speed Oven


Fast-heating 15s
Productive
Programmable

05.

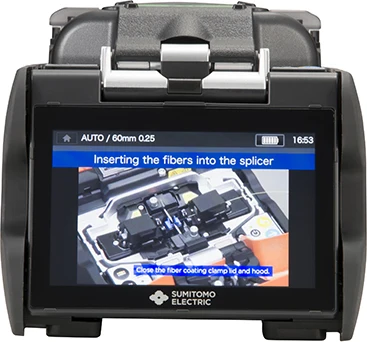

Video Tutorial


Video tutorial to help splicing job.
